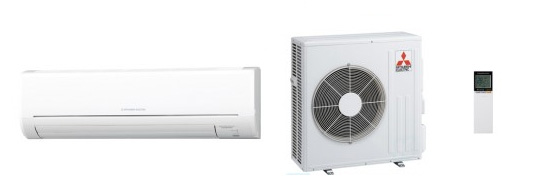

MSZ-GE60VA Inverter Heat Pump

This model has been completely redesigned amd features the new Catechin filter system. It offers industry leading noise levels and also includes a wide swing & long aiflow mode.

MSZ-GE60VA Indoor Unit

Capacity (kW):
Heating (Nominal) (Low - High)6.80 (2.00 - 9.30)
Cooling (Nominal) (Low - High)6.00 (1.50 - 7.50)
Heating (UK) (Low - High)5.65 (1.65 - 7.75)
Cooling (UK) (Low - High)5.95 (1.50 - 7.45)
SHF R410A (Nominal)0.79
COP / EER (Nominal)3.84 / 3.4
Energy Label Heating / CoolingA / A
Width - mm1100
Depth - mm238
Height - mm325
Weight - kg16
Airflow (m3/min) (Heating /Cooling) - Lo-Mi1-Mi2-Hi-SupHi11.3-13.4-15.6-18.3-20.7 /11.3-13.4-15.6-18.3-20.7
Noise (dBA) (Heating /Cooling) - Lo-Mi1-Mi2-Hi-SupHi37-41-45-49-52 /37-41-45-49-52
Pipe Size Gas mm (in)15.88 (5/8)
Pipe Size Liquid mm (in)6.35 (1/4)
Electrical SupplyFed by Outdoor Unit
PhaseSingle
Fuse Rating (BS88) - HRC (A)6
Interconnecting Cable No. Cores4


MUZ-GE60VA Outdoor Unit

Width - mm840
Depth - mm330
Height - mm880
Weight - kg50
Noise (dBA) (Heating /Cooling)55 /55
Electrical Supply220-240v, 50Hz
PhaseSingle
Fuse Rating (BS88) - HRC (A)16
SystemPower Input (kW) - Heating (Nominal)1.77
SystemPower Input (kW) - Cooling (Nominal)1.76
SystemPower Input (kW) - Heating (UK)1.611
SystemPower Input (kW) - Cooling (UK)1.408
Starting Current (A)7.9
SystemRunning Current (A) - Heating / Cooling7.9 / 7.8
Mains Cable No. Cores3
Max Pipe Length (m)30
Max Height Difference (m)15
Charge (kg) - 10m1.55
